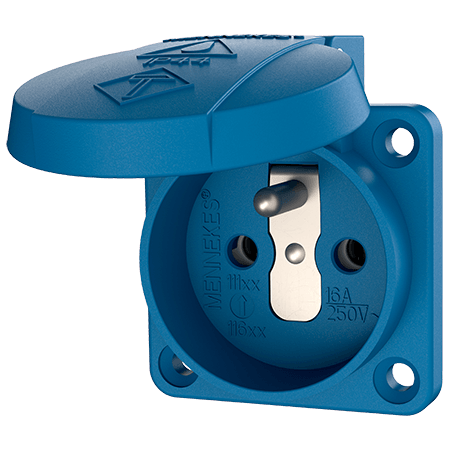

Panel mounted receptacle grounding-type 11131
Ampère
16 A
- French/Belgian system (NF)
- with hinged lid
- 3 screw terminals as connecting terminals for 1.5 - 2.5 mm²
Technische specificaties
Panel mounted receptacle grounding-type 11131
| Ampère | 16 A |
|---|---|
| Polen | 2 p+PE |
| Voltage | 230 V |
| Aansluittechniek | schroefklemmen |
| Contacten | standaard |
| Beschermingsgraad | IP44 |
| Aanrakingsveiligheid | Nee |
| Behuizing materiaal | Kunststof |

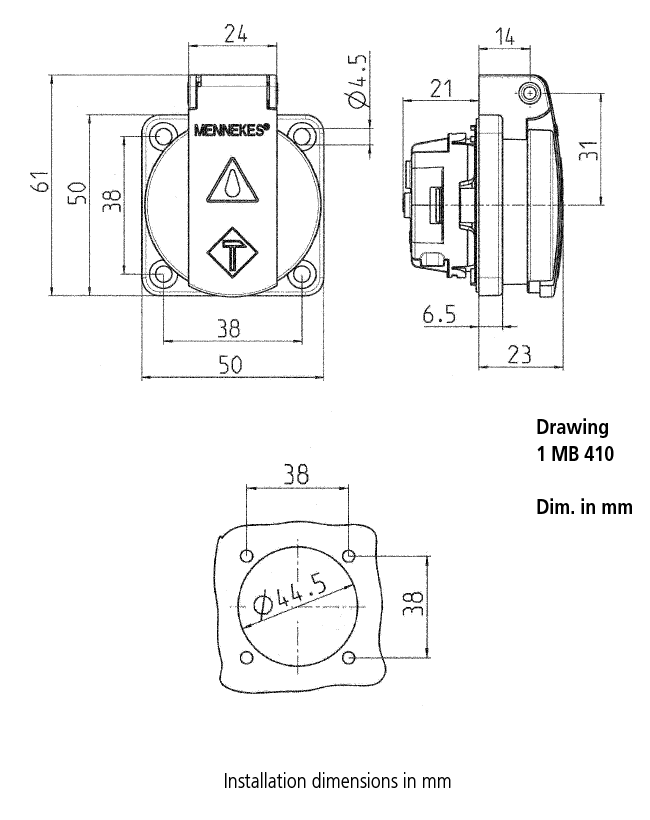

| Flens | 50x50 mm |
| Bevestigingsgaten | 38x38 mm |
| Gewicht | 46 g |
| Certificeringen | EAC |
